As a supplier of Electric Punch Presses, I've had numerous discussions with customers about the various components and features of our machines. One question that often comes up is about the function of the overload protection device in an Electric Punch Press. In this blog post, I'll delve into the importance and functions of this crucial safety feature.
Understanding the Basics of an Electric Punch Press

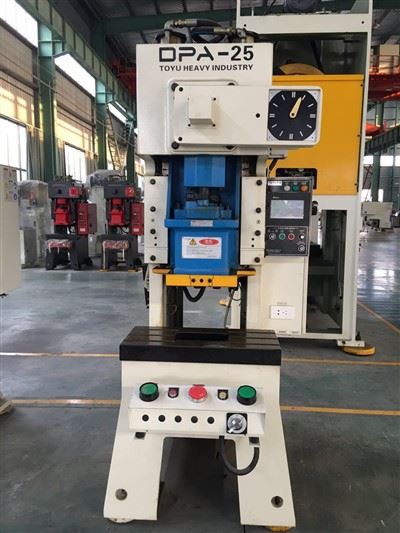

Before we dive into the overload protection device, let's briefly understand what an Electric Punch Press is. An Electric Punch Press is a powerful machine used in metalworking to cut, shape, or form metal sheets and other materials. It uses a ram that moves up and down to apply force to a die, which then performs the desired operation on the workpiece. These machines are widely used in industries such as automotive, electronics, and manufacturing for tasks like stamping, blanking, and forming.
The Role of Overload Protection in Electric Punch Presses
The overload protection device in an Electric Punch Press is designed to safeguard the machine and the operator from potential damage and hazards caused by excessive force or overloading. Here are the key functions of this device:
1. Protecting the Machine Structure
One of the primary functions of the overload protection device is to protect the mechanical structure of the punch press. When the machine is overloaded, for example, if the material being punched is too thick or hard for the machine's capacity, the excessive force can cause significant damage to the frame, gears, and other components. This can lead to costly repairs, downtime, and even render the machine inoperable. The overload protection device senses the excessive force and immediately stops the machine, preventing damage to its internal components.
2. Preventing Tool Breakage
In addition to protecting the machine structure, the overload protection device also helps prevent tool breakage. The dies and punches used in an Electric Punch Press are precision tools that are designed to operate within specific force limits. If the machine is overloaded, the tools can experience excessive stress, leading to cracks, chips, or complete breakage. This not only affects the quality of the punched parts but also requires frequent tool replacements, increasing production costs. By stopping the machine when an overload occurs, the device helps extend the lifespan of the tools and ensures consistent part quality.
3. Ensuring Operator Safety
Operator safety is of utmost importance in any industrial setting, and the overload protection device plays a crucial role in this regard. An overloaded punch press can pose serious risks to the operator, such as sudden movements, flying debris, or even machine collapse. By immediately stopping the machine when an overload is detected, the device reduces the risk of accidents and injuries, protecting the operator from harm.
4. Maintaining Production Efficiency
While it may seem counterintuitive, the overload protection device actually helps maintain production efficiency in the long run. By preventing machine damage and tool breakage, the device reduces the frequency of downtime for repairs and tool replacements. This ensures that the punch press can operate continuously and produce high-quality parts, leading to increased productivity and reduced production costs.
How Overload Protection Devices Work
There are several types of overload protection devices used in Electric Punch Presses, each with its own working principle. Here are some common types:
1. Hydraulic Overload Protection
Hydraulic overload protection systems use hydraulic cylinders to sense and control the force applied to the punch press. When the force exceeds a preset limit, the hydraulic fluid in the cylinders is forced out, activating a relief valve that stops the machine. This type of overload protection is highly accurate and can be easily adjusted to suit different operating conditions.
2. Mechanical Overload Protection
Mechanical overload protection devices use mechanical components such as springs, levers, or pins to sense and limit the force applied to the punch press. When the force exceeds the preset limit, the mechanical components are triggered, causing the machine to stop. This type of overload protection is simple and reliable but may require manual adjustment and maintenance.
3. Electronic Overload Protection
Electronic overload protection systems use sensors and controllers to monitor the force applied to the punch press. When the force exceeds a preset limit, the sensors send a signal to the controller, which then stops the machine. This type of overload protection is highly accurate, can be easily integrated with other machine control systems, and provides real-time monitoring and feedback.
Choosing the Right Overload Protection Device
When choosing an Electric Punch Press, it's important to consider the type and quality of the overload protection device. Here are some factors to keep in mind:
1. Machine Capacity
The overload protection device should be able to handle the maximum force capacity of the punch press. Make sure to choose a device that is rated for the specific machine you are purchasing.
2. Accuracy and Sensitivity
The device should be able to accurately sense and respond to overload conditions. Look for a device with high accuracy and sensitivity to ensure reliable operation.
3. Ease of Use and Maintenance
The overload protection device should be easy to use and maintain. Consider factors such as adjustability, calibration, and replacement of components.
4. Compatibility
Make sure the overload protection device is compatible with the other components and control systems of the punch press. This will ensure seamless integration and reliable operation.
Conclusion
In conclusion, the overload protection device is a crucial component of an Electric Punch Press. It plays a vital role in protecting the machine structure, preventing tool breakage, ensuring operator safety, and maintaining production efficiency. By understanding the functions and working principles of overload protection devices, you can make an informed decision when choosing an Electric Punch Press for your metalworking operations.
If you're in the market for an Electric Punch Press or have any questions about overload protection devices, I encourage you to contact us for more information. Our team of experts is always ready to assist you in finding the right machine for your needs. We also offer a wide range of Automatic Sheet Metal Punching Machines that are equipped with advanced overload protection features to ensure safe and efficient operation.
References
- "Metalworking Handbook" by American Society of Metals
- "Punch Press Technology" by Society of Manufacturing Engineers
